ALLDOCK INTEGRATE has been designed with the ultimate minimalist in mind. Imaging being able to dock and charge your Powerbank and Phone directly into a piece of furniture!
Charge your Phone and Wireless Pad simultaneously. When on the move remove the powerbank and have power backup always.
Whether you install yourself or pass the responsibility to your cabinet maker / electrician ect. This DIY Turn Key Kit provides all the components to achieve a great result.

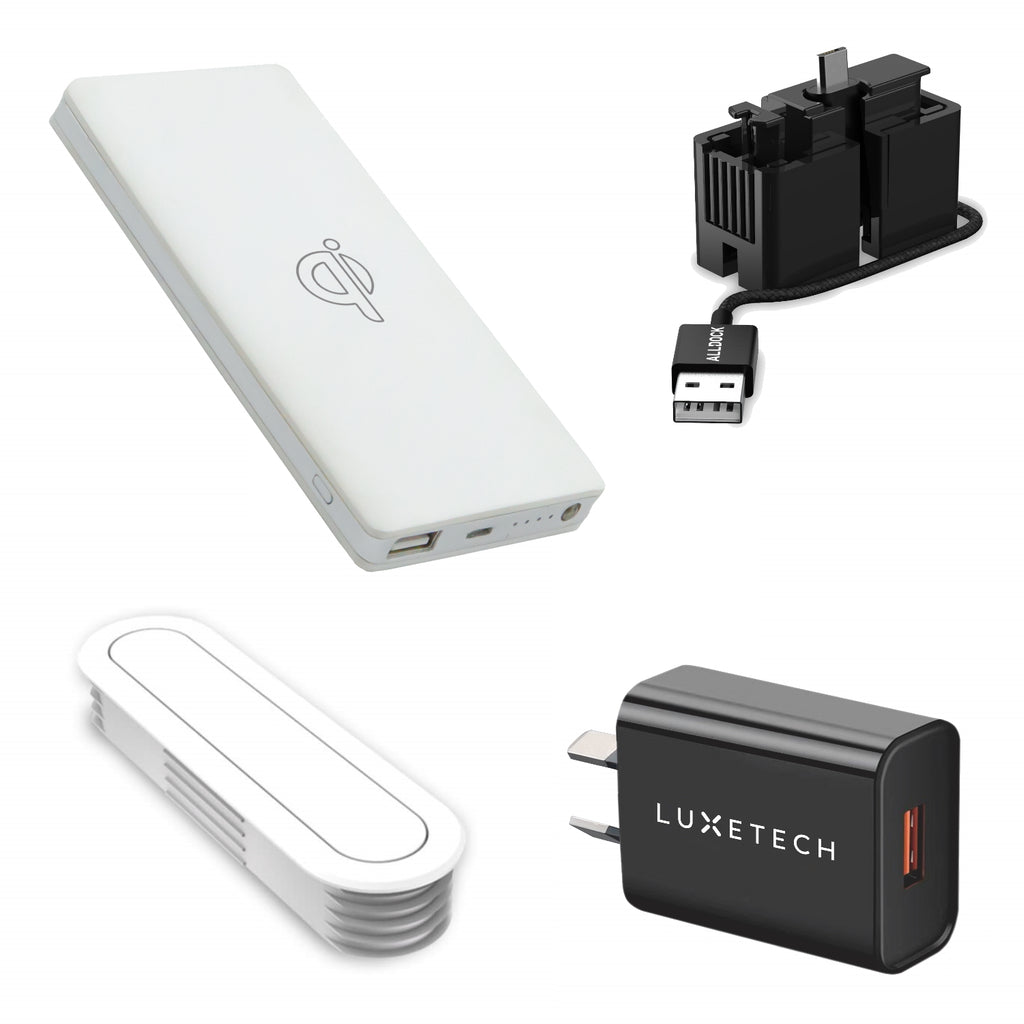

DIY KIT Components
1x White Single Rail _ Cutting Template
1x Micro Android Cable (160cm) + Click Adapter
1x 20W Wall Charger
1x Alldock 8000mAh Powerbank
Physical Dimensions - 14.85 x 7.1 x 12cm
Weight - 210g
Material - ABS in White
Includes 1x Micro Cable
Power Storage Capacity - 8000mAh
Wireless Charging Output - 5W (Double Inductance)
Input - Micro Input: DC 5V/2A
Output (USB A Female) - 5V 3A_15W, 9V 2.0A 12V 1.5A QC
4 times for iPhone 5
3 times for iPhone 7
2 times for iPhone 7plus/8/X/Xr/Xs/11/12
Qi Standard device manufacturers are Apple (iPhone 8 and above) Blackberry, WP, Samsung, Nokia, HTC, LG Electronics, Sony, Blackberry, Motorola Mobility, Asus, Huawei.

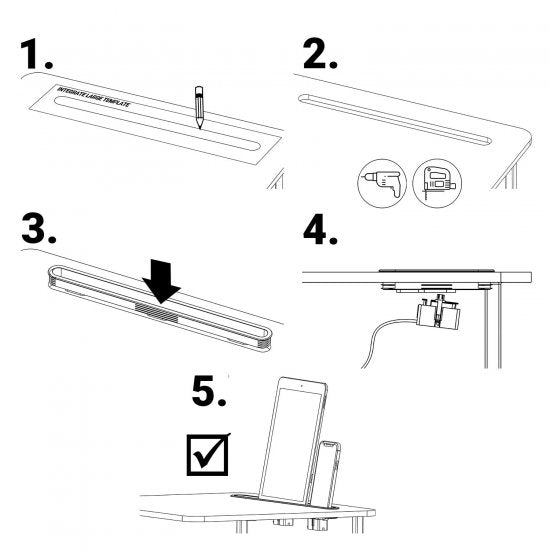

DIY Installation Guide: We recommend the use of a Drill & Jigsaw
